Arrow 9F Tag Attacher
Arrow 9F with D191 Needle
The Arrow 9F tag attacher ( Now available for Online Shopping ) is one of the best fine tag attacher available in the market. The brand of Arrow 9F tag attacher is most recommended by all industrial manufacturers. Just load the tag attacher with the tag pin, pull the trigger and tags are attached simply. Designed ergonomically for maximum comfort, the Arrow 9F tag attacher is very light weight, weighing just under 78 Gms, and yet it sturdy for continuous use. The Arrow 9F tag attacher is recommended for use with light weight fabrics. The tagpins and replacement spare needles for this tag attacher are sold separately.
- Suitable Tag Pins: I-pin and micro space fine tag pins. We best suggest it to be used with our ARROW brand of Fine Tag Pins.
- The Arrow - D191 MARK2 replacement needle is best suited for this Arrow 9F Tag Attacher.
- Average Needle Piercing Diameter is about 1.29mm and maximum thickness of fabric that may be pierced using this price gun is about 8.00mm.
- Improved gear lever mechanism helps the fasteners to be tagged with ease.
- There is no use of recycled material in the manufacture of Arrow 9f tag attacher, and hence the use of good quality raw materials aids the long life and durability of the tag attacher, providing reliable operation.
- The needle cap provided along with the tag attacher provides safety to the life of the tag attacher needle as well as safety to the operator.
- The scientifically designed trigger in Arrow 9f tag attacher gives an improved grip in the hands of the operator making the tag attacher squeeze out the tag pin with ease..

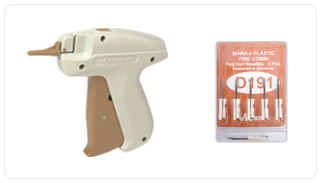

Packing Contains : 1 piece of Arrow 9F tag attacher with tag attacher needle cap, fitted with Arrow D191 tag attacher needle.
Tag gun needle information diagram
Tag gun needles fitted with Arrow 9F tag attacher
D191
| Dim | : | Size(mm) |
| A | : | 26.00 |
| B | : | 13.50 |
| C | : | 12.50 |
| D | : | 01.30 |
| E | : | 07.00 |
Y Without Step
| Dim | : | Size(mm) |
| A | : | 31.00 |
| B | : | 19.00 |
| C | : | 12.00 |
| D | : | 01.50 |
| E | : | 08.00 |
B171
| Dim | : | Size(mm) |
| A | : | 31.00 |
| B | : | 18.50 |
| C | : | 12.50 |
| D | : | 01.50 |
| E | : | 08.00 |
For I PIn
| Dim | : | Size(mm) |
| A | : | 25.50 |
| B | : | 10.00 |
| C | : | 15.50 |
| D | : | 01.30 |
| E | : | 05.00 |
Y With Step
| Dim | : | Size(mm) |
| A | : | 29.50 |
| B | : | 12.50 |
| C | : | 17.00 |
| D | : | 01.40 |
| E | : | 06.00 |
